Fivalo™ Cabinet Hinge & Positioning Jig

Name: Fivalo™ Cabinet Hinge & Positioning Jig
Brand: Fivalo
Price: 183.00 DKK
Availability: InStock

183,00 kr 365,78 kr

- 50%

Hurry! Only 19 Left in Stock!

Product variants

Product Details & Compatibility

Position the hinge. Transfer the pattern. Repeat the setup.

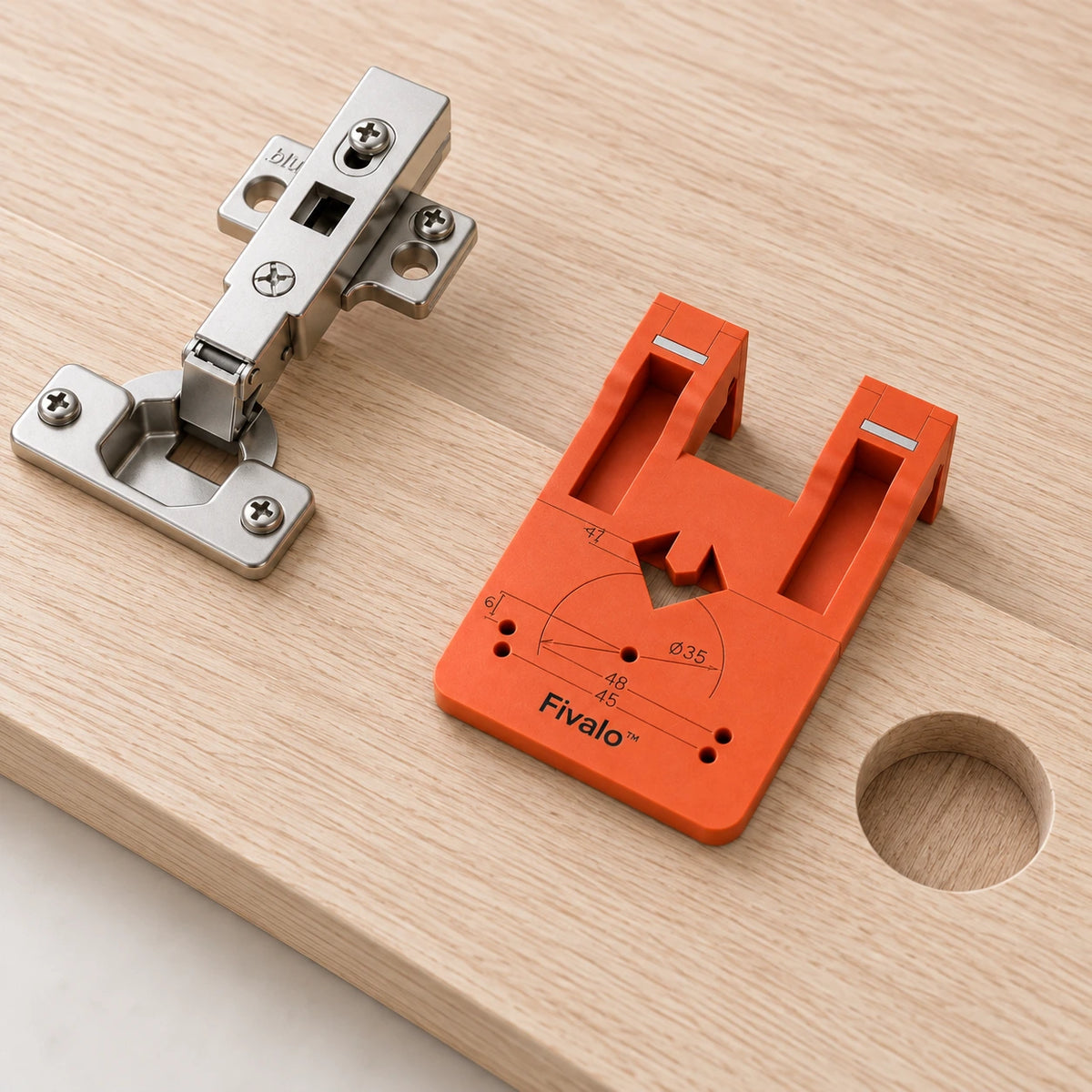

Designed for common 35 mm concealed cabinet hinges
Built-in 35 mm positioning reference
45 / 48 mm mounting references
Magnetic contact areas help hold compatible metal hinges
Foldable positioning design
Suitable for cabinet doors, wardrobes, built-ins and furniture
Designed for repeatable hinge-layout work

Note: Always confirm your hinge's cup size and mounting-hole pattern before drilling.

Technical Reference

Hinge Compatibility
European-style concealed cabinet hinges
Cup Diameter Reference
35 mm
Mounting Pattern References
45 mm / 48 mm
Magnetic Hinge Retention
Integrated magnetic contact points help keep compatible metal hinges positioned during setup
Edge Registration
Door-edge reference design for more repeatable positioning
Foldable Design
Folds down for more compact storage between jobs

Primary Use
Hinge positioning, mounting-point marking, and repeatable reference transfer

Fivalo™ Cabinet Hinge & Positioning Jig

183,00 kr 365,78 kr

- 50%

Position the Hinge. Mark the Pattern. Repeat It.

Stop laying out every concealed hinge from scratch.

The Fivalo™ Cabinet Hinge Positioning Jig gives you a physical reference for positioning common 35 mm concealed hinges, transferring mounting points, and repeating the same setup across multiple cabinet doors.

Built-in magnetic contact points help hold compatible metal hinges in position while the marked 35 mm and 45/48 mm references make the setup easier to understand and repeat

Choose the Right Hinge Setup Before You Drill.

The Fivalo™ jig helps you position the hinge correctly before marking or drilling, so you can work with more confidence and repeat the same setup across multiple doors.

Cup Position

Helps you reference where the concealed hinge should sit.
Mounting Guide

Helps you transfer the hinge mounting points more accurately.
Repeatable Setup

Use the same positioning process from one door to the next.

Better Hinge Positioning Starts With Better Door Gaps.

Uneven cabinet-door gaps often begin with inconsistent hinge placement.

The Fivalo™ Cabinet Hinge Positioning Jig gives you a clear, repeatable reference for positioning the hinge before you mark or drill — helping you keep the setup more consistent from one door to the next.

Instead of holding the hinge by hand and recreating the position every time, use the jig to work with more control and less repeated layout.

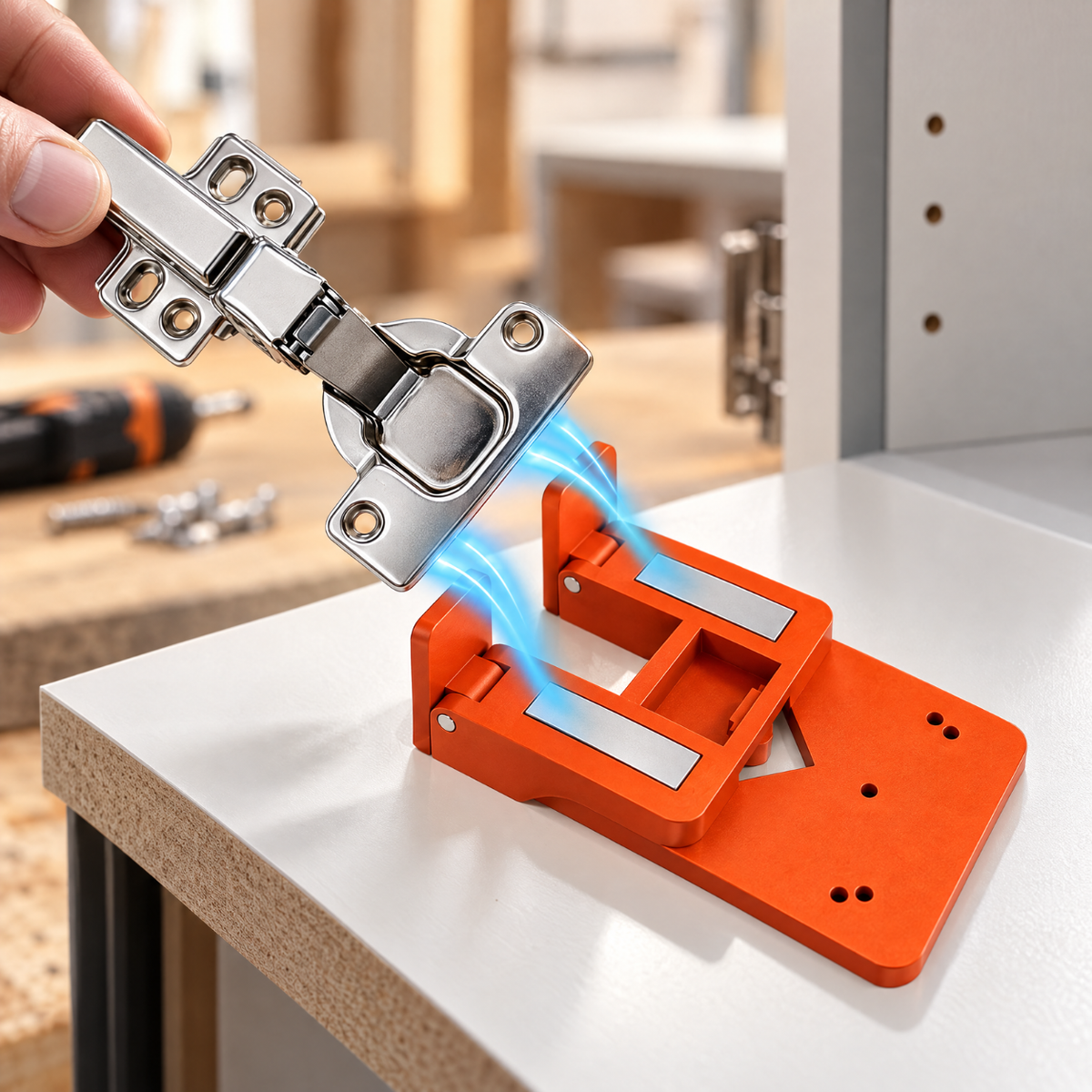

Magnetic Hold. Easier Positioning.

Holding a loose hinge in place while trying to mark or drill the mounting points can be awkward.

The Fivalo™ jig uses integrated magnetic contact points to help keep compatible metal hinges steady during setup, giving you a more controlled reference while you check the position and transfer the mounting points.

Less holding by hand. More control before you drill.

From Loose Hinge to Marked Door in 4 Steps.

Step 1 - Set the Jig

Place the Fivalo™ jig against the cabinet-door edge using the positioning arms as your physical reference.

Step 2 - Choose the Hinge Reference

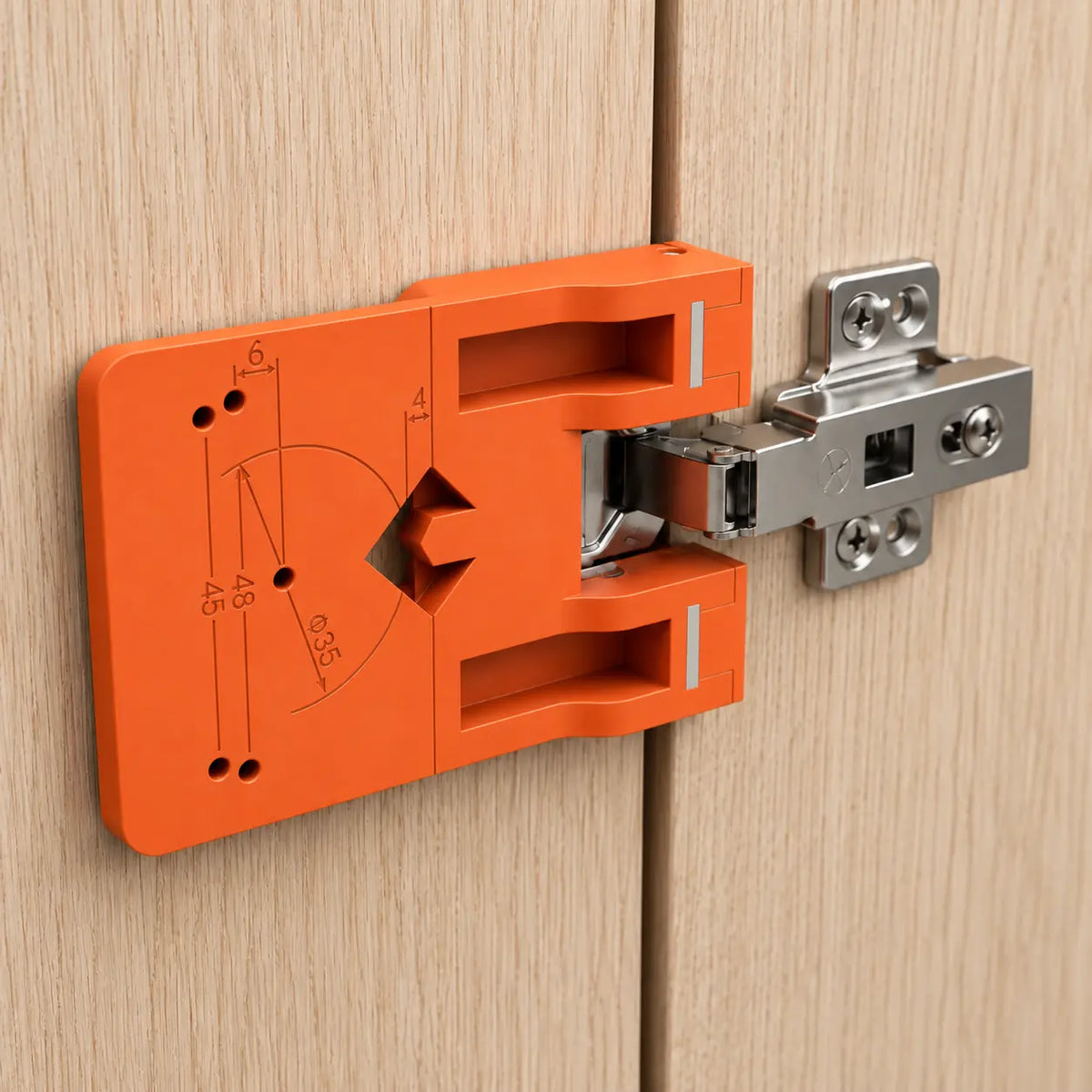

Confirm the 35 mm and 45/48 mm markings that correspond to the concealed hinge you're installing.

Step 3 -Position & Transfer

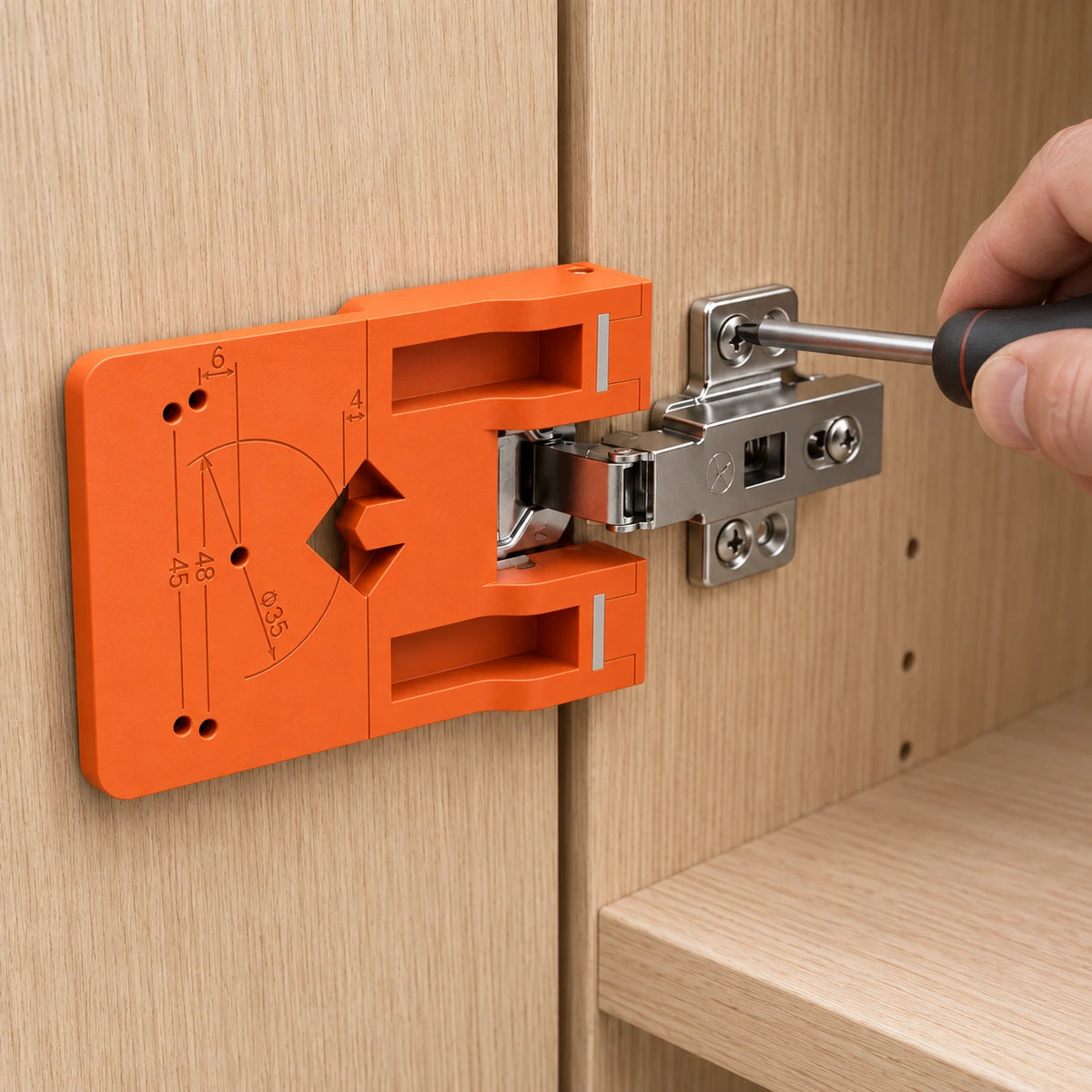

Use the jig to position the hinge and mark, or drill where appropriate, the required mounting references.

Step 4 - Repeat

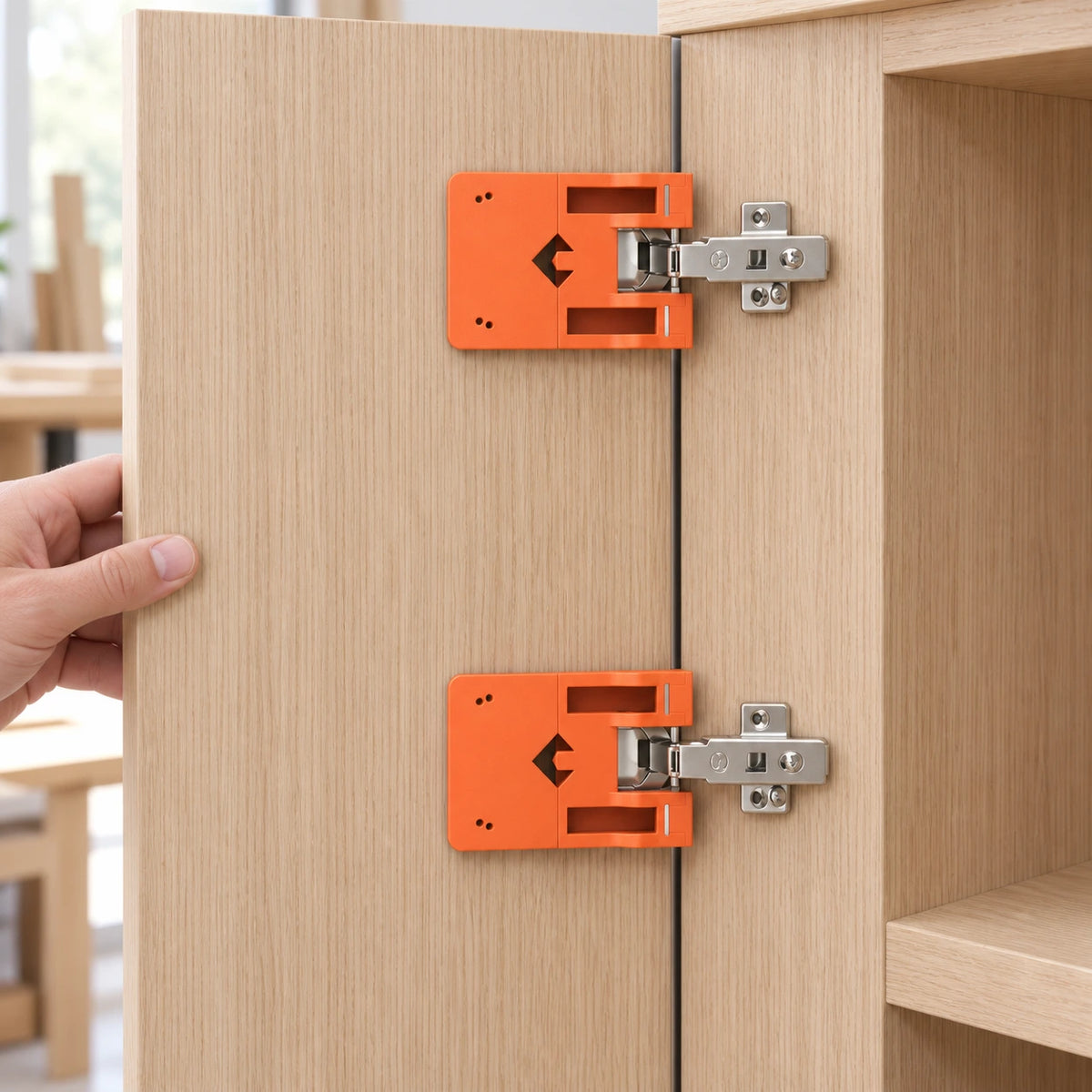

Move to the next hinge location and repeat the same setup for a more consistent installation workflow.

Frequently Asked Questions

What does the Cabinet Hinge Positioning Jig actually do?

It helps position compatible concealed hinges and transfer repeatable mounting references to the cabinet door.

Is it for 35 mm concealed hinges?

The jig includes a 35 mm concealed-hinge reference and is designed around common European-style concealed cabinet hinge setups.

What do the 45 mm and 48 mm markings mean?

They provide alternative mounting references for compatible concealed-hinge patterns. Always compare the markings with your specific hinge before drilling.

Does the jig hold the hinge?

The product includes magnetic contact areas intended to help hold compatible metal hinges during positioning.

Does this tool drill the 35 mm cup hole?

This product is primarily a hinge positioning and mounting-reference jig.

For boring the actual 35 mm concealed-hinge cup recess, use a dedicated 35 mm concealed-hinge drilling jig.
