Fivalo™ 2-in-1 kapi tõste- ja tugitungraudade komplekt (2 tk)
Two working ratings: up to 360 lb per pair in lift mode; up to 180 lb per pair in extended support mode.
Secure checkout · Product support from Fivalo
Hoidke kapp vajalikus kohas – seejärel kasutage mõlemat kätt loodimiseks, kiilude paigaldamiseks ja kinnitamiseks. See kahe tungraua süsteem muundub põrkmehhanismiga tõstetungraudadest pikendatud kolmanda käe tugedeks ja puidutööklambriteks, pakkudes üksinda paigaldajale paremini juhitavat seadistust esimesest reguleerimisest kuni viimase kruvini.
- Kaks sobivat tungrauda toetavad töö mõlemat otsa
- Tõste-, pikendatud toe ja klambri konfiguratsioonid
- Tootja esitatud maksimaalne pikkus: 23,4 tolli
- Paari kandevõime tõsterežiimis: kuni 360 naela
- Paari kandevõime pikendatud toe režiimis: kuni 180 naela
- Mõõduskaalaga siinid ja laiad kaitsva kattega kontaktpinnad
Lõpetage tasakaalustamine. Alustage joondamist.
Jäägid ja ajutised toed võivad nihkuda just siis, kui vajate mõlemat kätt. Asetage paar tasasele ja stabiilsele pinnale, tõstke kumbagi külge kontrollitud sammudena, kontrollige loodisolekut ja joondust ning kinnitage kapp kapi tootja nõutud kinnitusvahendite ja seinakonstruktsiooni abil.
Kolm tööviisi
Ülakappide toestamine
Kinnitage laiad tugiraamid ja kasutage paari kapi all pärast selle ohutut tõstmist töökõrgusele. Reguleerige mõlemat külge, samal ajal kui loodite, paigaldate kiile ja kinnitate kappi.
Tõstmine ja loodimine
Kasutage laiu kontaktplaate lühikese ulatusega paigutamiseks alumiste kappide, mööbli või toestatud detailide all. Hoidke koorem keskel ja kasutage mõlemat tungrauda koos.
Paneeliservade klammerdamine
Paigaldage kontrollitud klambrikinnitused, et hoida sobivate paneelide servi paigal, samal ajal kui kontrollite tasapinnalist joondust. Klambrirežiim on mõeldud ajutiseks detailide kinnitamiseks, mitte projektipõhiste klambrite asendamiseks, kui on vaja suuremat jõudu või ulatust.
Kontrollitud tooteandmed
- Komplekt: 2 kapitungraua koostu
- Tootja esitatud maksimaalne pikkus: 23,4 tolli
- Aluse ligikaudsed mõõtmed: 3,7 × 4,1 tolli
- Korpuse ligikaudne kõrgus: 16 tolli
- Kandevõime tõsterežiimis: kuni 360 naela paari kohta
- Kandevõime pikendatud toe režiimis: kuni 180 naela paari kohta
Komplekti kuulub
- 2 × kapitungraua koostu
- 4 × klambri-/tugikinnitust kahes näidatud stiilis
- 6 × kaitsekatet
- 1 × kasutusjuhend
Kasutage ohutult
See tööriist on mõeldud ajutiseks paigutamiseks ja toestamiseks; see ei ole konstruktsiooniline toestus ega õhuliikide ohutusseade. Kontrollige enne kasutamist kõiki osi, töötage tasasel ja stabiilsel pinnal, hoidke koorem keskel, kasutage tungraudasid koos ning ärge kunagi ületage valitud režiimi kandevõimet. Kinnitage kapp sobiva seinakonstruktsiooni külge enne tungraudade koormusest vabastamist. Hoidke käed muljumiskohtadest eemal ja vajutage vabastusmehhanismi järk-järgult alles pärast seda, kui koorem on iseseisvalt toestatud.

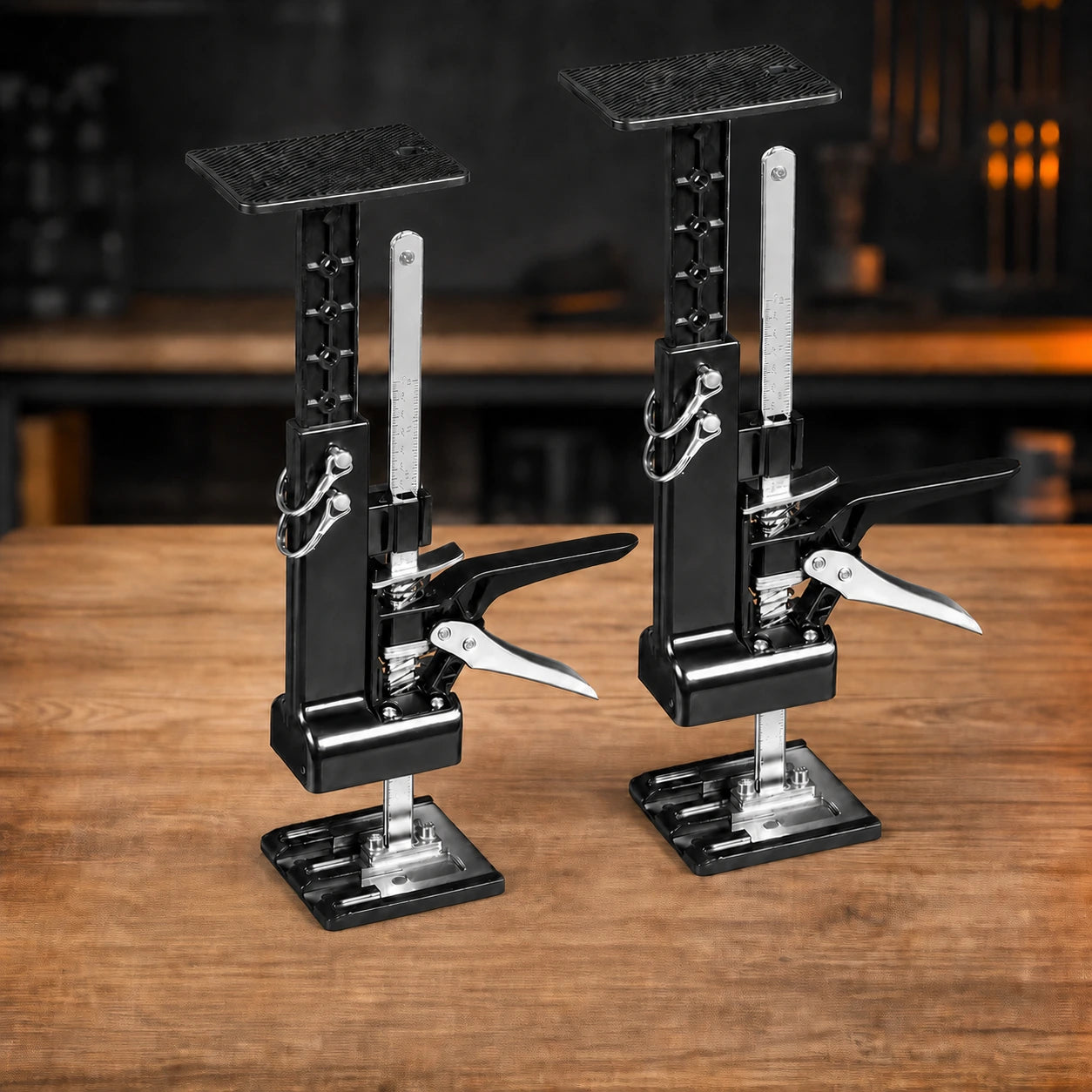

Fivalo™ 2-in-1 kapi tõste- ja tugitungraudade komplekt (2 tk)
Lift, support, and align from a stable paired setup instead of rebuilding a stack of scraps every time the cabinet moves.
Two jacks. Three jobs. Both hands back on the install.
Stop balancing. Start aligning.
Scrap blocks can shift just when you need both hands. Place one jack near each end, raise in controlled steps, then level, shim, and fasten with the cabinet held at the working position.
One matched pair. Three ways to work.
Choose the configuration for the job, then stay inside the rating for that mode.

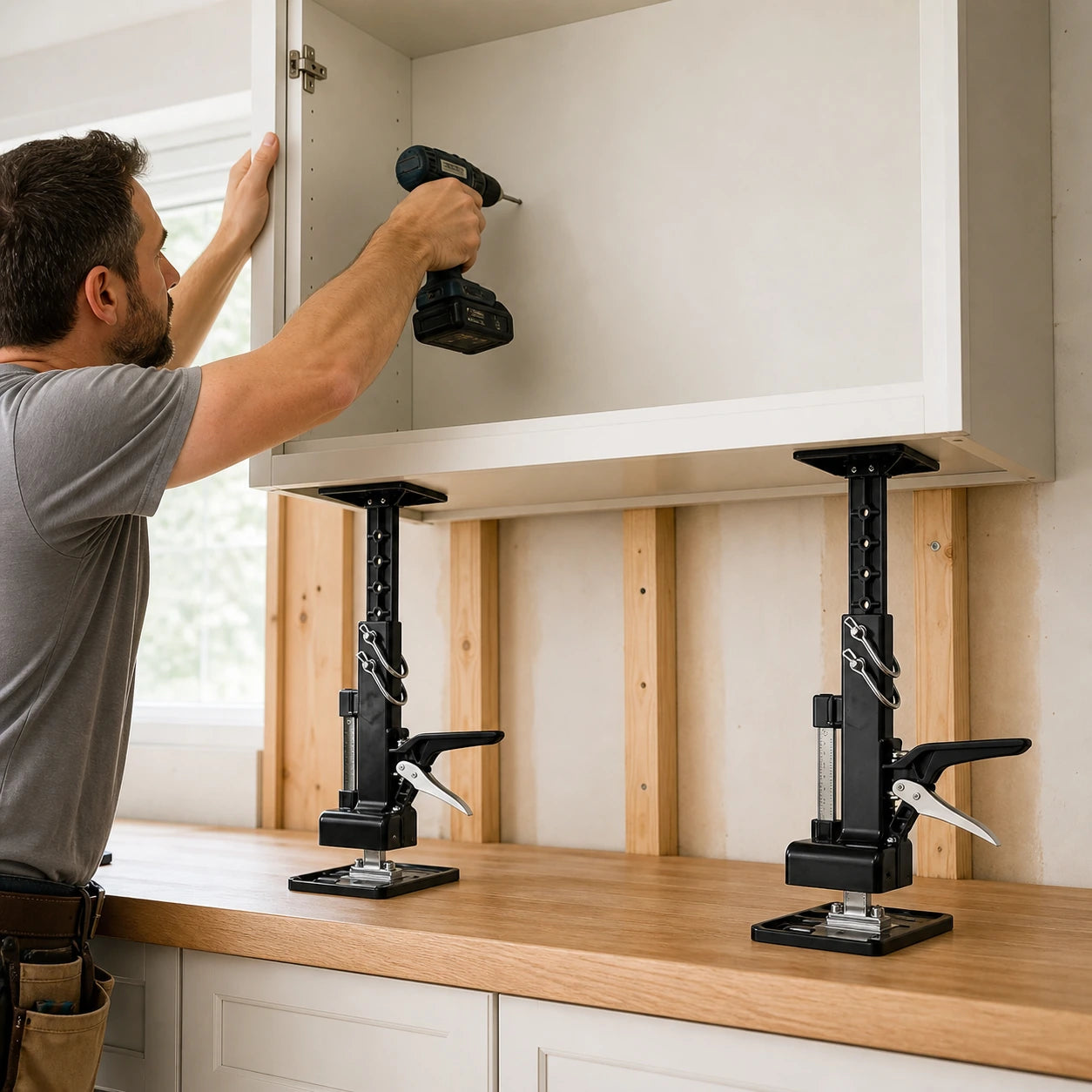

1. Support upper cabinets
Fit the wide support frames and use the pair beneath a cabinet after it has been safely placed at working height.

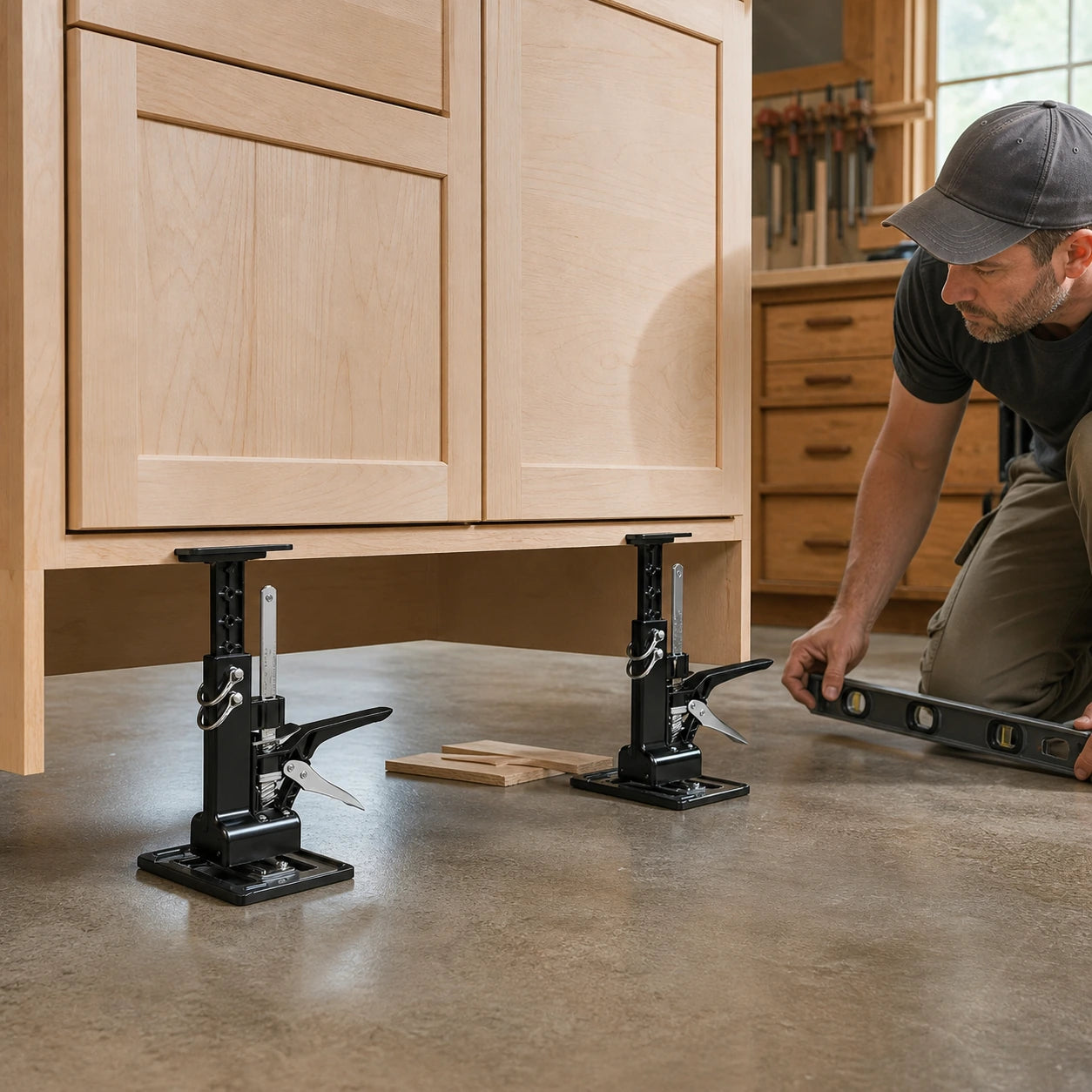

2. Lift and level
Use the broad contact plates for short-range positioning under base cabinets, furniture, and supported workpieces.

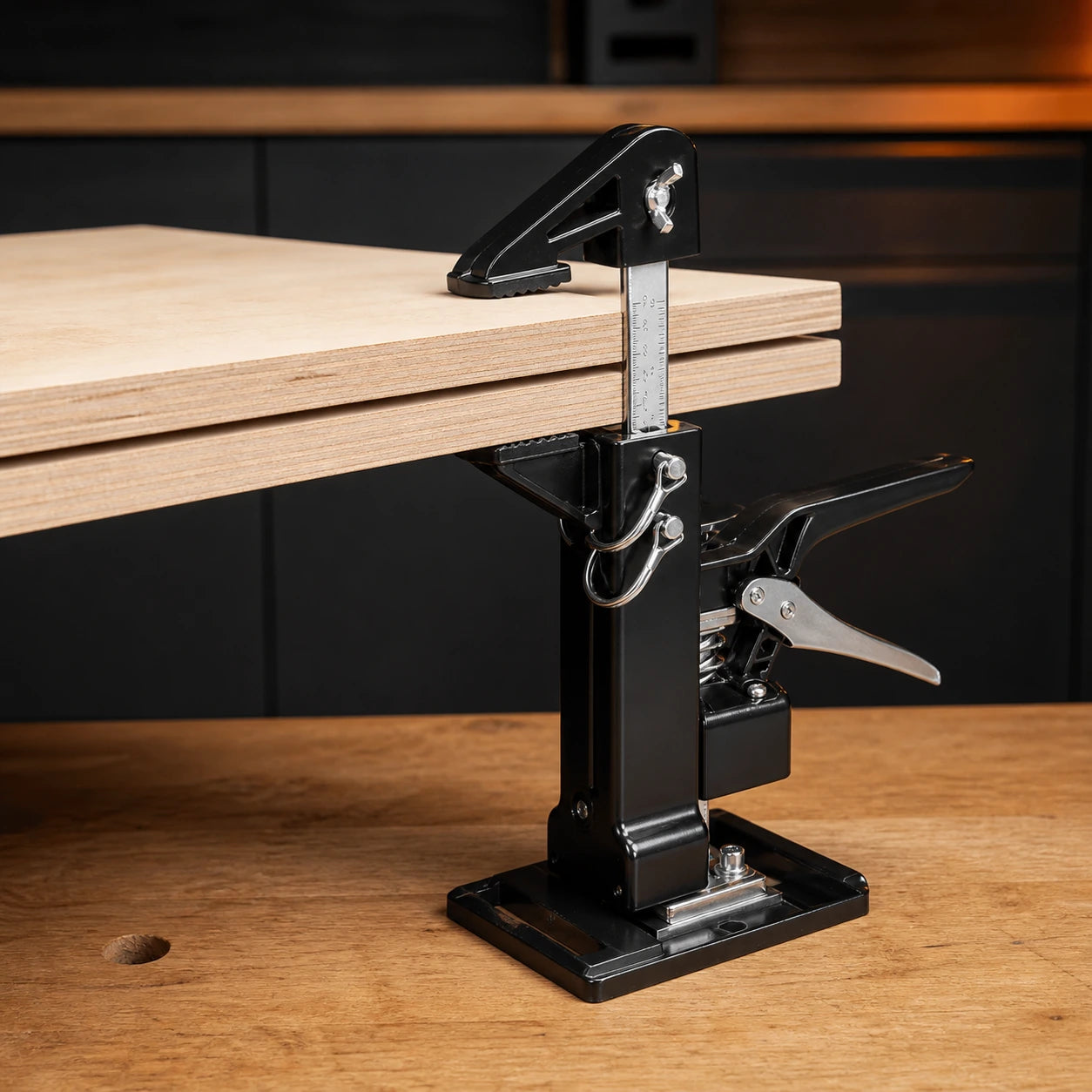

3. Clamp panel edges
Fit the clamp attachments for temporary workholding while you check flush alignment on compatible panel edges.

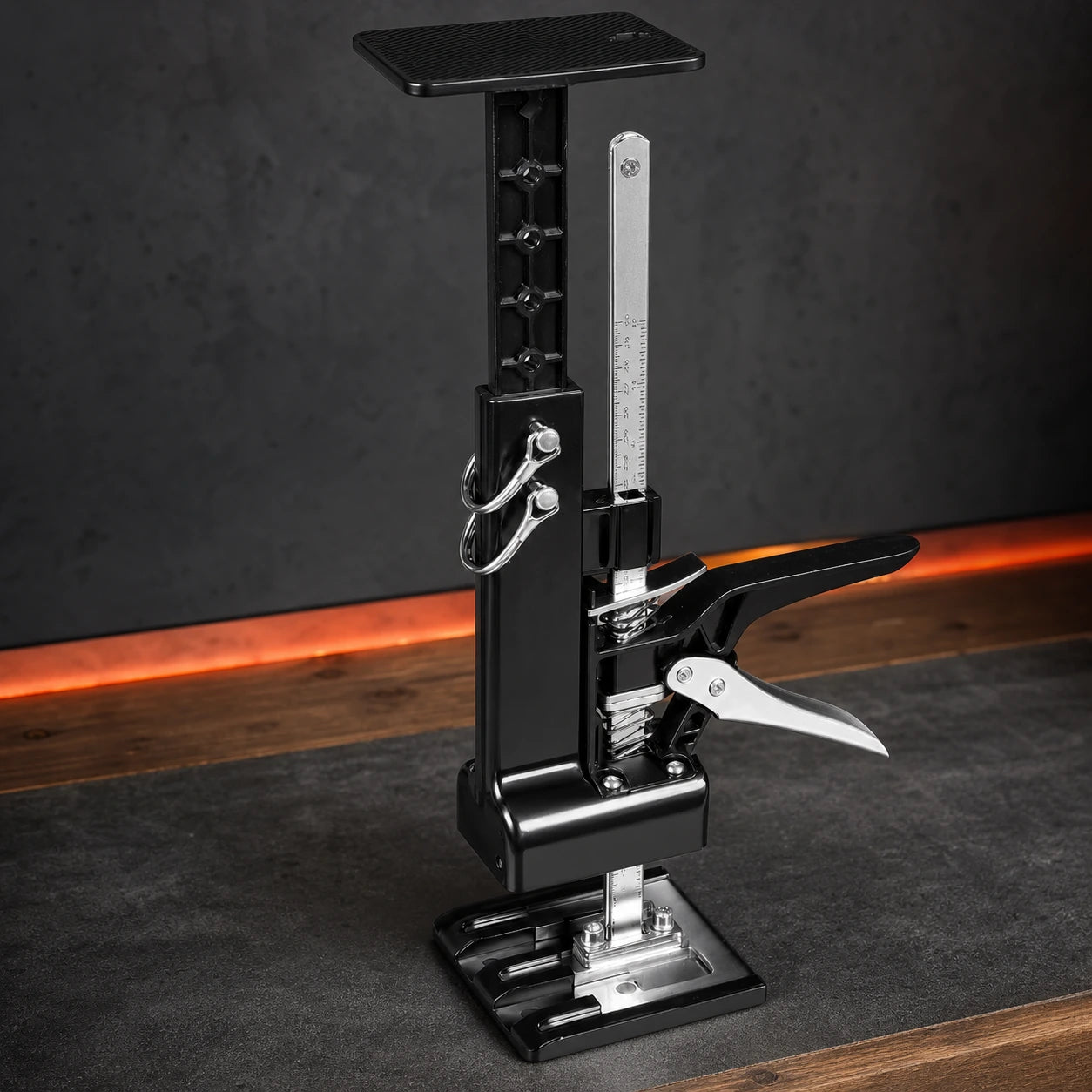

Control you can see before the first screw
The mechanism, scales, and contact surfaces are built around controlled positioning—not guesswork.
Scale-marked adjustment
Visible markings make paired height checks easier while you bring each side into position.
Broad contact surfaces
Wide ribbed support plates and rectangular slotted bases spread contact across the working surface.
Ratings matched to the mode
Up to 360 lb per pair for direct lifting; up to 180 lb per pair for extended cabinet support.
From first lift to final fastener
1. Place the pair
Work on flat, stable surfaces with one jack near each end and the load centered on the contact pads.
2. Raise in steps
Alternate between sides and watch the scale marks so the cabinet stays controlled as it reaches position.
3. Align and fasten
Check level and plumb, add required shims, then fasten to suitable wall structure using the cabinet maker’s instructions.
4. Unload, then release
Confirm the cabinet is independently secured, keep hands clear, and press each release gradually before removing the jacks.

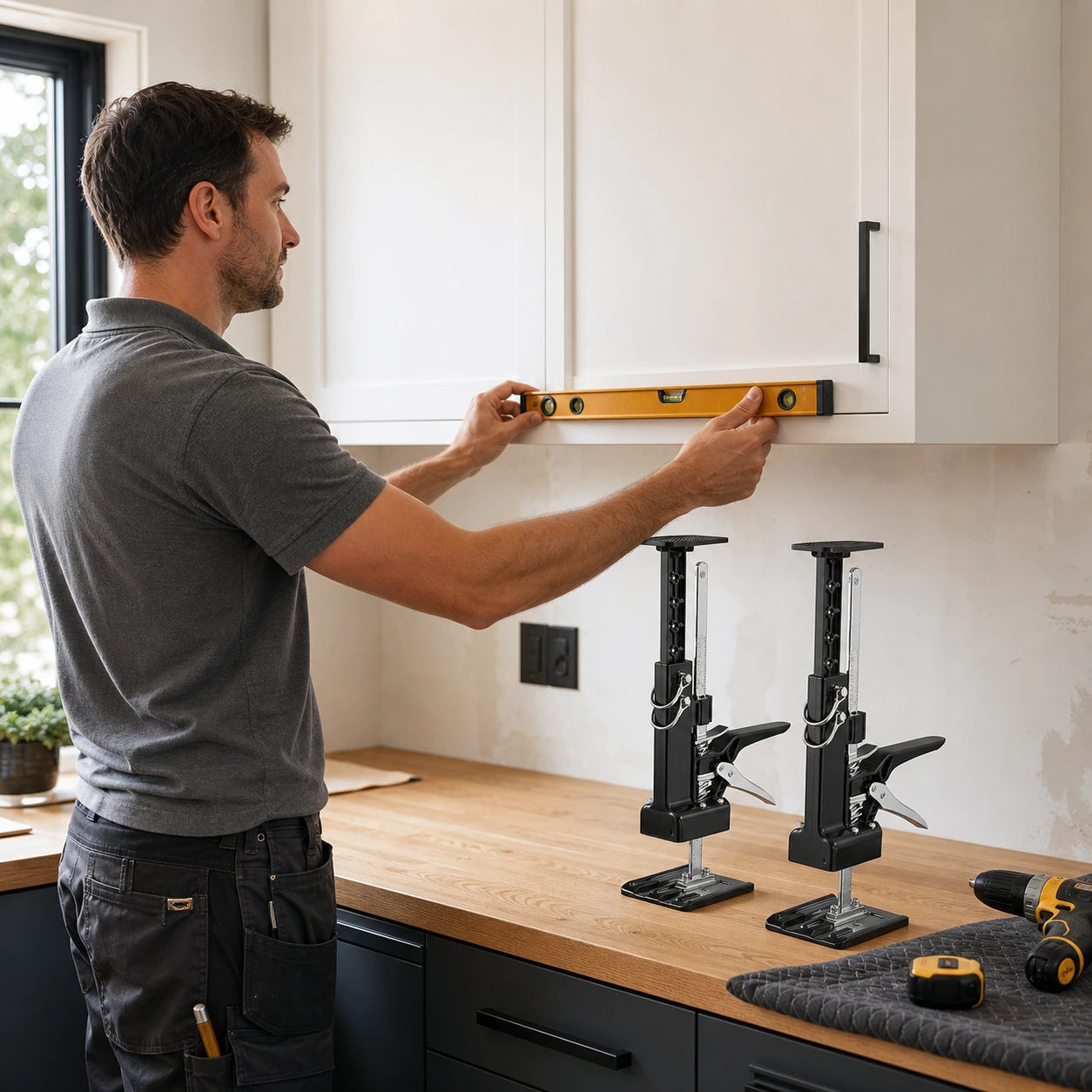

Check alignment before the tools come out
The paired setup gives you time to verify level, reveal, and fastener placement while the cabinet stays supported. Once it is secured to the required wall structure, unload each jack and remove it from the work area.
Product details
Verified specifications
Set: 2 cabinet jack assemblies
Listed maximum extension: 23.4 in
Approximate base: 3.7 × 4.1 in
Approximate body height: 16 in
Scale-marked adjustment rails
Mode-specific ratings
Direct lift mode: up to 360 lb per pair.
Extended cabinet-support mode: up to 180 lb per pair.
Use the pair together, keep the load centered, and never exceed the rating for the selected configuration.
What’s included
2 × Cabinet jack assemblies
4 × Clip/support attachments in the two styles shown
6 × Protective covers
1 × Instruction manual
Safe use
Temporary positioning/support only; not structural shoring or overhead safety equipment. Inspect before use, work on flat stable surfaces, secure the cabinet independently before unloading, keep hands clear of pinch points, and press the release gradually.
Frequently asked questions
Can these jacks support an upper cabinet during installation?
Yes. The extended support frames are designed to hold a cabinet after it has been safely placed at working height. Use one jack near each end on a stable surface, then fasten the cabinet to suitable wall structure before unloading the jacks.
How high do they extend?
The manufacturer lists a maximum extension of 23.4 in. Measure from your stable working surface to the cabinet underside and allow for the contact pads before ordering.
What are the load ratings?
The pair is listed for up to 360 lb in direct lift mode and up to 180 lb in extended cabinet-support mode. Do not apply the higher lift rating to the extended support configuration.
Can one person install a cabinet with them?
The jacks can reduce the need to hold and balance the cabinet while aligning and fastening, but they do not replace safe lifting, suitable wall fasteners, or a second person when the cabinet or site conditions require one.
How do I lower the load?
First secure or independently support the load. Keep hands clear of pinch points and press the release gradually. No fine-descent claim is made, so maintain control and never release a loaded jack abruptly.
What comes in the set?
Two cabinet jack assemblies, four clip/support attachments in the two styles shown, six protective covers, and one instruction manual.
A matched two-jack system for installers who want fewer makeshift props and more control at the cabinet.
